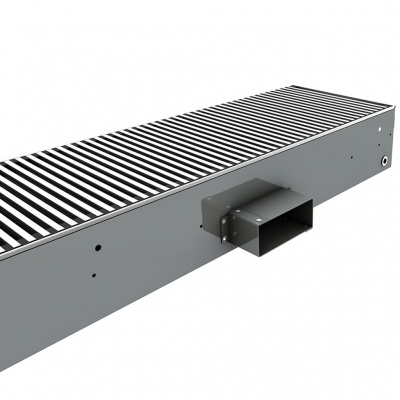

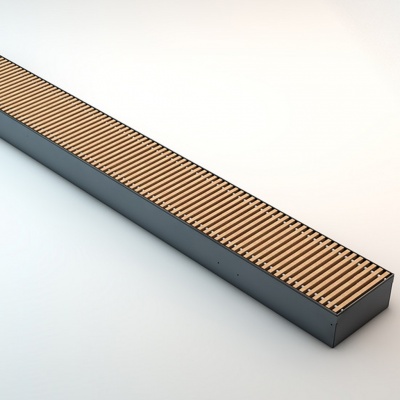

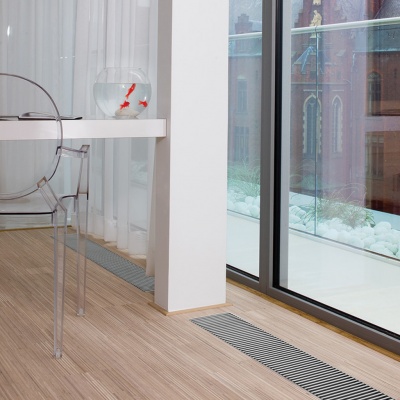

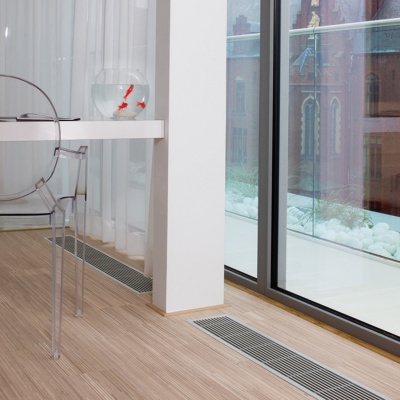

jaga clima canal trench heater - hybrid (heating and cooling)
the jaga clima canal is a 2 pipe trench heater. (8cm depth heating only / 10cm depth heating and cooling).
the jaga clima in floor trench radiator provides strong btu heating and cooling power utilising jaga's low h20 technology and ultra quiet fan assemblies.
stylish grilles add a superior finishing touch to the advanced Jaga Clima Canal trench heating system.
buy jaga clima canal trench heaters online at trenchstyle.co.uk with free perimeter heating delivery.
- 2 pipe connection system

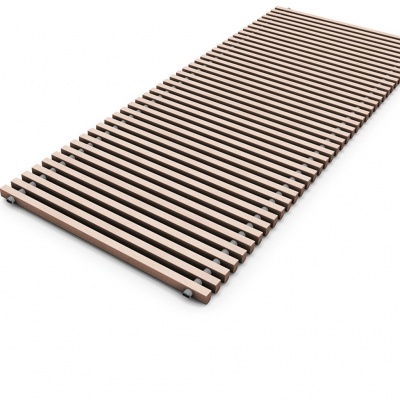

- multiple grille options

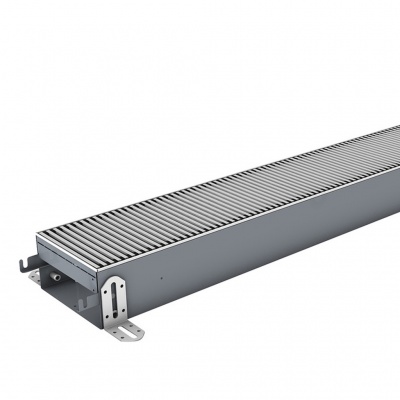

- extended feet options
- heat pump compatible
- ultra quiet fan technology
the jaga clima trench heater are 2 pipe systems which require warm water supply for heating and chilled water supply for cooling, it is recommended lockshields are installed at the trench heater with zonal valves provided at the manifold controlled by room stat or other.
btu and watts values listed are for heating values - please refer to documentation for cooling outputs.
the 10cm depth unit has an additional area for condensation.
the 10cm heating and cooling unit requires warm water for heating and chilled water for cooling.
The Jaga Clima Canal Trench radiators come with free delivery.
Clima Canal information
Clima Canal Info
Jaga Clima Canal Hybrid
Clima Canal Hybrid H010
Hybrid H010 CAD file
click on link for relevant information for jaga clima canal heating and cooling system
Option 1 - Jaga Dynamic Product Controller & Lockshields
(You supply 24V to the Trench Heater with fans cutting in and out on water temperature, you control water flow by remote valves or boiler cut in etc)
Option 2 - JRT200 Thermostat & 24V valve set
(You supply 24V and 0-10v control to the Trench Heater and valve set via the Thermostat to control the fan speed and valves)
Option 3 - Jaga Dynamic Product Controller & JRT200 Thermostat & 24V valve set
(You supply 24V to the Trench Heater with fans cutting in and out on water temperature, and 24V and 0-10v control via the JRT200 to the valves).
Option 4 - Jaga Dynamic Product Controller & TRV with Sensor Head
(You supply 24V to the Trench Heater with fans cutting in and out on water temperature, you control water flow using a Trench Heater mounted TRV with a wall mounted dial connected via capillary to the TRV)
